Foreword:
As the world's largest annual consumer digital product feast, CES2011 has ended in the first few days. In flat-panel TVs, 3D TV is still one of the focuses of CES2011. Some time ago, PConline had already evaluated Toshiba's first 3D TV 55ZF1C. Recently, PConline received Toshiba's flagship 3D TV, the 55X1000C, and it was not too late. Next, let's take a look at the evaluation performance of this new 3D product.
Product Model: Toshiba 55X1000C
Reference Price: Unlisted
First, Toshiba 55X1000C first evaluation
As Toshiba’s flagship 3D TV, the 55X1000C uses a MEGA LED full backlight control system, which is equipped with a CELL REGZA high-quality engine, and is equipped with 200Hz frequency-doubling processing technology and environmental sensitometric control function. Its 2D to 3D function is greatly compensated. The current 3D film source has fewer defects. In addition, the Toshiba 55X1000C has a Rocket Sound System and believes that its unique subwoofer will bring unique feelings to everyone.
Toshiba 55X1000C picture evaluation forum offer
From a parameter point of view, compared with Toshiba’s first 3D TV ZF1, both of them have applied overclocking and instantaneous 200Hz frequency doubling technology, but the X1000 performance upgrade is still quite obvious, using the MEGA LED full backlight control system, increased Rocket Sound System and Auto View Smart Sense System.
Although the Toshiba 55X1000C quotation has not been disclosed, but from the performance configuration and level positioning can probably guess that its competitors are mainly Sony LX900, Sharp LV925, Samsung C8000 series. Toshiba's 55X1000C is the highest-end 3D TV at Toshiba. The configuration of MEGA LED full-backlight control system, super-resolution, Auto View intelligent sensing system, and rocket sound system has already determined that it is a high-end flagship machine.
Quality performance, 3D effect is the focus of this evaluation, the author will be from the 3D effect, point to point, gray level, color performance, dynamic contrast, high-definition video, USB playback, power consumption comparison, etc., evaluation of the picture effect is only for For reference, let us immediately enter the evaluation article. >>
Second, Toshiba 55X1000C Appearance Appreciation
At first glance, Toshiba's 55X1000C gives the impression that it is slim and stylish. When you look closely at the side of the frame, the bright chrome strips are attached to the 55X1000C's frame, making it more noble. The most attractive place is its lower stereo, which floats below the screen and has not yet been heard for its effects.
Toshiba 55X1000C picture evaluation forum offer
Toshiba 55X1000C screen border line is more sturdy, people feel masculine atmosphere, still marked in the upper left corner of the screen "REGZA" logo, the lower left of the screen there is no other font logo, the lower right there is a power indicator.
Toshiba 55X1000C screen frame details
Toshiba 55X1000C screen frame details
Toshiba 55X1000C silver metal LOGO with its black body with more beautiful, base with a metal wire drawing panel, coupled with the square shape is noble and stable, the base supports rotation function, to facilitate the user to view from different angles.
Toshiba 55X1000C Square Base
Can be seen from the side view, 55X1000C is quite thin, compared with a common IC card, you can see 55X1000C body thickness is much smaller than the IC card, the thickness of the control is relatively good.
Toshiba 55X1000C Side View
The back of the 55X1000C body is covered with many heat dissipation holes, which can effectively improve the long-term watching TV and bring overheating problems. The interface area is arranged in an “L†shape and is divided into a side interface area and a bottom interface area.
Toshiba 55X1000C Rear View
The 55X1000C has two USB ports, one LAN port, AV video input, and AV video output, and two HDMI ports on the side interface area. The other two HDMI ports, VGA port, and audio port are located on the bottom port.
Toshiba 55X1000C side interface area
Toshiba 55X1000C under interface area
Toshiba 55X1000C uses a remote control workmanship is quite good, the material selection is also very elegant, the surface is a brushed panel, the lower part of the design also has a small slider, open after you can see the shutdown, DVD and other shortcut keys, the actual use of feel Better.
Toshiba 55X1000C Remote Controller
Toshiba 55X1000C remote control details
From the appearance point of view, Toshiba 55X1000C atmosphere is tough, chrome bright bar makes the whole machine look very stylish and noble, drawing the base of the panel adds a sense of prudent, 55X1000C body work is more outstanding, the remote control design is unique. >>
Third, Toshiba 55X1000C menu layout
55X1000C menu interface is simple and easy to understand, horizontal is divided into images, sounds, multimedia, favorite, set five items, vertical is the corresponding adjustment of each option, which provides a wealth of adjustments.
Toshiba 55X1000C Menu Layout
Toshiba 55X1000C menu interface
Toshiba 55X1000C Advanced Image Settings provides Super Resolution, ClearScan 200Hz Pro, Noise Reduction, Black/Whitewater, and Static Gamma Equality options, allowing users to make related settings.
Toshiba 55X1000C Advanced Image Settings
In the expert picture setting, the 55X1000C provides an expert test mode. After this mode is enabled, there will be black scale and color test pictures. The user can also test the 55X1000C performance capability without using professional software.
Toshiba 55X1000C Test Mode
Toshiba 55X1000C offers a variety of image mode options, including the standard, movie 1, movie 2, Auto View and other image modes, in order to let users have a more intuitive feeling of Toshiba 55X1000C image mode performance, the author selected the standard, movie 1, The effects of Auto View's three modes are only for users' comparison. From the effect point of view, Auto View mode automatically senses the ambient brightness and automatically adjusts the brightness of the screen, while Movie 1 mode has a lower brightness and is suitable for longer viewing time.
Toshiba 55X1000C standard mode effect
Toshiba 55X1000C Movie 1 (left) AutoView (right) mode effect
Fourth, Toshiba 55X1000C point-to-point test
During the peer-to-peer test, the PC used by the author was the Lenovo ThinkPad SL400 series, and the signal was input to the TV through the HDMI interface. First set the resolution of the PC to 1920×1080, the refresh rate is 50Hz, and then set the 55X1000C screen display to “raw†mode in the menu. The 55X1000C full HD point-to-point is presented to the author. From the point of view of the actual display effect, Toshiba 55X1000C text strokes clear, full HD point-to-point effect is satisfactory.
Toshiba 55X1000C Full HD Point-to-Point Effect
In the Monoscope Full HD 1080p signal test, the 55X1000C performed relatively well on horizontal lines, vertical lines, oblique lines, and circles, while for the performance of 1080p lines, the adhesion of the four lines was very slight.
Toshiba 55X1000C Full HD Point-to-Point Effect
The following is a close-up view of the Toshiba 55X1000C LCD panel. From the pixel shape, the white, red, blue, and green colors are arranged vertically and rectangularly. This type of pixel and common panel pixel shapes have The difference is that the specific type of panel is unknown and it needs to be further confirmed.
Toshiba 55X1000C panel pixel close up
Although the menu interface of the Toshiba 55X1000C is not creative, it provides rich adjustment content and can be set with various parameters. The 55X1000C Full HD peer-to-peer effect is excellent, and the performance of the Full HD signal test is clear. >>
Five, Toshiba 55X1000C 3D principle analysis
There are many ways to achieve 3D video viewing, which can be mainly divided into naked-eye type and glasses type. Among them, the naked-eye raster display method and holographic display method are difficult to achieve, and it is expensive and difficult to popularize. Spectacle type is divided into color separation method, light division method, time division method and other technologies, color separation method is the earliest and cheapest 3D technology, but easy to cause color cast, 3D effect is also the worst; light division method that is high school textbook introduction The polarizing 3D technology is better than the color separation method, but the screen is difficult to achieve full HD, brightness is relatively low; time division method is also known as active shutter 3D technology, widely used, excellent results, the disadvantage is that glasses are expensive and some of the screen will A sense of flicker.
Toshiba 55X1000C 3D principle analysis
The Toshiba 55X1000C uses active-shutter 3D technology. The principle is this: The screen will show the picture to the left eye first. At this time, the glasses will cover your right eye simultaneously, which is a bit like a pirate's blindfold. Then, the screen will quickly switch to the right eye. At this time, the glasses will turn to cover your left eye and make sure that the picture you see is correct. This process alternated very quickly, reaching 120 times per second, so it was impossible for the human eye to see this shift.
Toshiba 55X1000C 3D principle analysis
Toshiba 55X1000C comes with 2 pairs of active shutter 3D glasses. The appearance color of the glasses is all black, and the overall design is wide. Even if the user has already worn glasses, wearing 3D glasses will not have obvious sense. There is a switch button on the side of the glasses, long press a few seconds to turn on the glasses.
Toshiba 55X1000C 3D Glasses
Toshiba 55X1000C uses the current mainstream active shutter 3D technology, its effect is better than polarized light 3D and color difference 3D technology, but the 3D glasses blinking, crosstalk and angle problems are an important factor constraining its development, hope the technology in the future Can solve these problems. >>
Six, Toshiba 55X1000C 3D screen effect
In order to allow users to experience the difference between 3D images and 2D images more intuitively, the authors used the naked eye and the 3D glasses to perform screen captures. In the naked eye, we see 3D images with ghost images. The picture taken through the 3D glasses is a 2D image. By comparing the two, we can still find many differences and the general effect of 3D images.
The first is the effect of depth of field. The following are the 3D pictures and 2D pictures taken through the glasses. From the two different positions of the same object, such as the robot and the bridge, we can roughly feel the depth of field effect. The 3D picture of the Toshiba 55X1000C is quite real. .
Toshiba 55X1000C 3D Effect Test (Naked Shot)
Toshiba 55X1000C 3D effect test (photographed through glasses)
Followed by the screen brightness, wear 3D glasses, the screen brightness is bound to have a certain loss, if you want to better see the details of the dark part of the screen, it must improve the overall brightness of the screen. From the actual effect point of view, when the brightness of the 3D effect screen is moderate, the brightness of the 2D screen appears to be high, and consumers need to make a balance between the two.
Toshiba 55X1000C 3D Effect Test (Naked Shot)
Toshiba 55X1000C 3D effect test (photographed through glasses)
Again is the screen color, compared to CCFL backlight LCD TV, LED LCD TV in the picture has made some progress in color, but is limited to LCD TV display principle, to improve the brightness of the viewing screen, the picture style will be slightly biased white effect.
Toshiba 55X1000C 3D Effect Test (Naked Shot)
Toshiba 55X1000C 3D effect test (photographed through glasses)
It is worth mentioning that the Toshiba 55X1000C supports 2D to 3D functionality, even ordinary 2D video can also be converted into 3D images in real time, breaking the limitations of the original 3D film only to 3D TV.
Toshiba 55X1000C 2D to 3D (naked eye)
Toshiba 55X1000C 2D to 3D (photographed through glasses)
From the screen shot of the author, although the stereoscopic effect of the converted 3D image is inferior to the native 3D, this function is still quite practical, which greatly reduces the problems caused by the shortage of 3D film sources.
Toshiba 55X1000C 2D to 3D (naked eye)
Toshiba 55X1000C 2D to 3D (photographed through glasses)
The use of 3D technology in the LCD TV platform will inevitably create a problem, that is, the problem of viewing angle. The angle of viewing here is not the viewing angle, but the angle between the horizontal position of the 3D glasses and the TV. In a word, the problem is whether you can wear 3D glasses and watch TV on your side. From the actual playback effect point of view, Toshiba 55X1000C wear 3D eyes to watch, in the glasses rotate to about 45 ° range, see the screen brightness, 3D effects are not significantly changed, when the angle exceeds 45 °, the glasses through The light rate will gradually decrease. When the glasses and the screen angle reach 90°, the screen will be completely covered.
Toshiba 55X1000C 3D viewing angle test
Through the author's actual experience, Toshiba 55X1000C has a good performance in depth of field, three-dimensional sense is also very strong, the phenomenon of crosstalk is relatively minor, also has 2D to 3D function, but based on its 3D display principle, the phenomenon of spectacles blinking is inevitable. >>
Seven, Toshiba 55X1000C grayscale comparison test
Since the screen shot has undergone the necessary software processing and is affected by the actual effect of the netizens' display, the screen displayed on the screen will eventually differ from the actual effect of the TV. Therefore, the actual effect is based on the author's text description. The author uses a Hi-Definition Reference Disc test disc, Sony PlayStation 3 as a Blu-ray player. The digital camera used was a Canon 50D with a Canon EF-S 18-200mm f/3.5-5.6 IS.
The first test was a 15-gradient grayscale test. From the actual screen, the Toshiba 55X1000C LCD TV performed satisfactorily, and it was easy to distinguish each gray level, with 0, 1, 14 and 15 gray levels being more obvious.
Toshiba 55X1000C 15 Gradient Grayscale Test
In the black gray tolerance test, charcoal's line stripe road can be clearly seen in the charcoal backlight position, but the detailed performance needs to be strengthened, and the texture effect is general. In controlling noise, Toshiba 55X1000C has a good performance, and the overall effect is satisfactory.
Toshiba 55X1000C charcoal black test
Eight, Toshiba 55X1000C color performance test
First of all, we use Display X to perform Toshiba 55X1000C full color gamut color overtesting. From the performance of the screen, the color is bright and transparent, the transition between green and light blue is relatively rush, overall, 55X1000C has quite Nice effect.
Toshiba 55X1000C full color domain color transition test

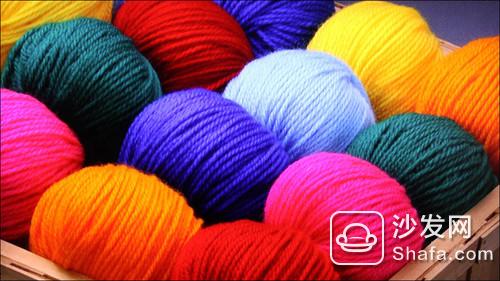

In order to make everyone see the performance of the Toshiba 55X1000C in various colors more clearly, the author selected a screen containing a variety of colors of wool balls. From the screen shots, it can be seen that the 55X1000C shows red and pink adhesion. obvious.
Toshiba 55X1000C color performance test
For the color performance of the TV, the color that is most difficult to accurately display is golden yellow. In the test process, Toshiba 55X1000C has good performance for gold and pink, accurate color, clear texture, no overexposure.
Toshiba 55X1000C color performance test
Toshiba 55X1000C color performance test
Black and white contrast, the black girl's clothes in the black background outline more clearly, the most difficult to express the red wine part is also accurate and clear; white girls' clothes in a white outline is very clear, the color of the red wine in the transparent glass is slightly owed quasi.
Toshiba 55X1000C black and white contrast test
The two girls exchanged positions. The contrast between the black background and the white clothes and the white background against the black clothes was very obvious. The black hair part of the white girl had slight loss of detail and the color of red wine was more accurate.
Toshiba 55X1000C black and white contrast test
Toshiba 55X1000C can clearly display 15 gradient grayscale, the overall black sinking ability is relatively good, but the dark details need to be strengthened. 55X1000C full color gamut color transition effect is quite good, good performance on gold and other colors. >>
Nine, Toshiba 55X1000C dynamic picture test
In this part of the test, users are required to pay attention to the front window of the fast moving train and the body plate of the car. The author used the same ISO and aperture in the shooting process. The parameters are ISO-400 and F4.5. The time is 1/100 seconds. Toshiba 55X1000C adopts overclocking and instantaneous 200Hz frequency multiplication processing technology. From the effect of the moving train, the ghost phenomenon is relatively slight at the front of the train, and the dynamic effect is satisfactory.
Toshiba 55X1000C dynamic picture test
In the high-definition video of a section of vehicles that is played below, we need to observe the car's license plate and the outline of the car body. Toshiba 55X1000C can play more smoothly for the entire video, and the license plate and vehicle outline have very slight ghosting.
Toshiba 55X1000C dynamic picture test
Toshiba 55X1000C dynamic picture test
Ten, Toshiba 55X1000C power comparison test
Toshiba 55X1000C uses LED backlight source, rated power consumption is 180W, compared to ordinary 55-inch CCFL LCD TV is very power-saving, and from the author's evaluation experience, the actual power consumption is much lower than the rated power consumption . The author uses the instantaneous power consumption test method, which is to measure the power consumption values ​​of the six screens of red, green, blue, white, black and color transitions in the standard mode.
Toshiba 55X1000C power test
From the actual test results, Toshiba 55X1000C in the standard image mode, the lowest power consumption of the black screen, only 84W, while the power consumption of several other screens maintained at about 177W, energy-saving effect is ideal.
Toshiba 55X1000C uses overclocking instantaneous 200Hz frequency processing technology, the dynamic effect of clear and clear, the overall picture is satisfactory, and power consumption, the standard mode is maintained at about 177W, for a 55-inch TV, the energy-saving effect is still Nice. >>
Eleventh, Toshiba 55X1000C high-definition video test
In the HD video test section, the author played the Dolby Blu-ray HD test disc and the Blu-ray documentary “Homeâ€. The first is a video of animal activity on the African savannah of the Dolby Blu-ray Disc, with more moving pictures and details. The Toshiba 55X1000C is accurate and clear for the color of the lizards, and it performs well for the noise control of the highlights.
Toshiba 55X1000C HD video test
Toshiba 55X1000C HD video test

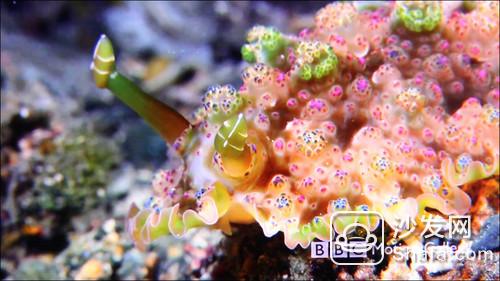

Followed by the documentary "Home", the film is very rich in color, natural environment, more screen, which will be able to better test the performance of Toshiba 55X1000C on various colors.
Toshiba 55X1000C HD video test
Toshiba 55X1000C HD video test
From the actual playback results, Toshiba 55X1000C play a Blu-ray high-definition video, the performance of the high-definition picture is ideal, smooth video playback, color reproduction is accurate, clear details, the effect of watching movies is quite good. >>
Twelve, Toshiba 55X1000C streaming media function test
The Toshiba 55X1000C's streaming media feature has been significantly upgraded from previous models, allowing the playback of movies, pictures, and music. It is compatible with the current mainstream HD file formats and supports formats such as RMVB, TS, MOV, JPEG, and MP3.
Toshiba 55X1000C multimedia file browsing interface
Judging from the evaluation process, Toshiba 55X1000C can smoothly play TS, MKV and other formats of video. Next test the high-definition video playback effect of the 55X1000C. The following are the playback effects of the TS format and the MKV format.
Toshiba 55X1000C 1080p Full HD TS Playback
Toshiba 55X1000C 1080p Full HD MKV format playback
Toshiba 55X1000C supports playback of JPEG and other formats. Here, I used a high-definition player to read the picture. In the picture playing interface, the 55X1000C will automatically generate a preview page, arranged in three rows and seven columns. The user can select the corresponding picture to play.
Toshiba 55X1000C is connected with HDTV player
Haimeidi HD player main interface
Toshiba 55X1000C HD picture playback
Toshiba 55X1000C supports MP3 and other formats of music playback, but can be seen from the following playback interface diagram, 55X1000C music interface is too monotonous, there is no detailed list of songs.
Toshiba 55X1000C music playback
Toshiba 55X1000C supports streaming media playback function, can directly insert U disk and other external devices can achieve playback, 55X1000C on high-definition video and picture playback performance is better, but the support format is not much, and the music playback interface is too simple. >>
Thirteen, PConline evaluation room summary
As Toshiba’s flagship 3D TV, the 55X1000C features a MEGA LED full backlight control system. The unique CELL REGZA high-definition engine enhances the picture performance. It has 200Hz frequency multiplication processing technology, super resolution technology, and Auto View intelligent full-feeling system. High-end features, in addition, Rocket sound system in terms of appearance and performance have made the 55X1000C up a notch.
Toshiba 55X1000C picture evaluation forum offer
Through the above detailed evaluation of multiple projects, PConline evaluation room evaluation performance of Toshiba 55X1000C is summarized as follows:
2, HDMI interface can achieve full-resolution multi-resolution point-to-point;
4. Rocket Sound System improves sound effects;
5, color reproduction is accurate, the overall picture quality is good;
8, the dynamic picture is clear and clear, smear phenomenon is slight.
Toshiba 55X1000C performance configuration is quite high-end, MEGA LED full backlight control system, CELL REGZA high-definition engine, 200Hz frequency multiplication processing technology has provided strong support for its outstanding picture performance capabilities, rocket sound system to interpret more shocking sound effect. 55X1000C's 2D picture is clear and natural, accurate color reproduction, 3D depth of field is obvious, a strong sense of three-dimensional, you can also achieve 2D to 3D function, a bit of regret is that streaming media support the format is not much, the network application is not powerful enough. [Back to Channel Home]
